Habotest HT208D digitális bilincsmérő

Habotest HT208D digitális bilincsmérő
Habotest HT208D digitális bilincsmérő
Habotest HT208D digitális bilincsmérő

Bővebben
Várható szállítási idő :
3 nap
További adatok
Raktáron
19 590 Ft
Részletek

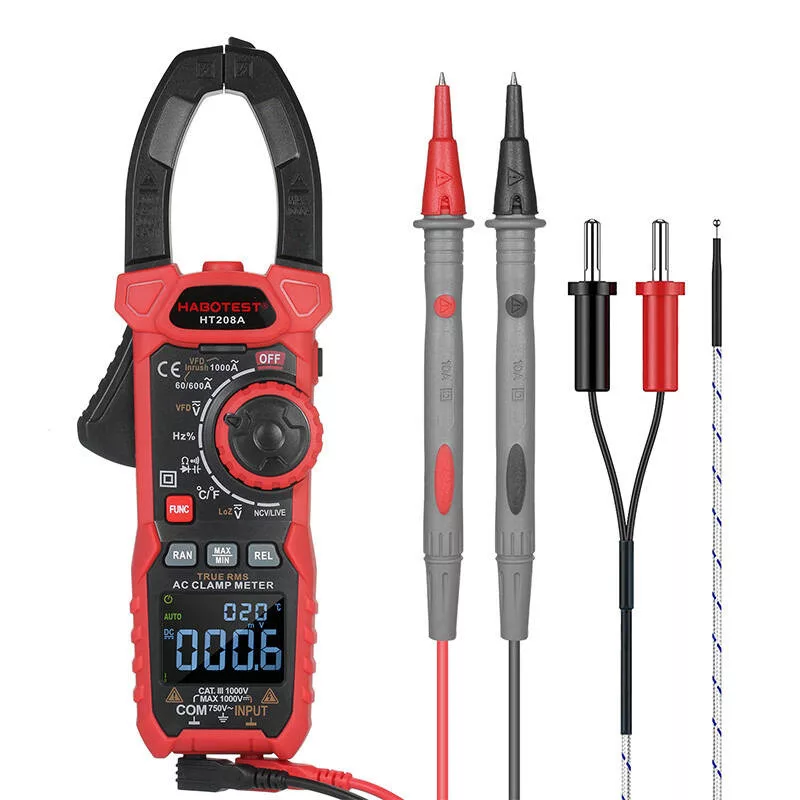

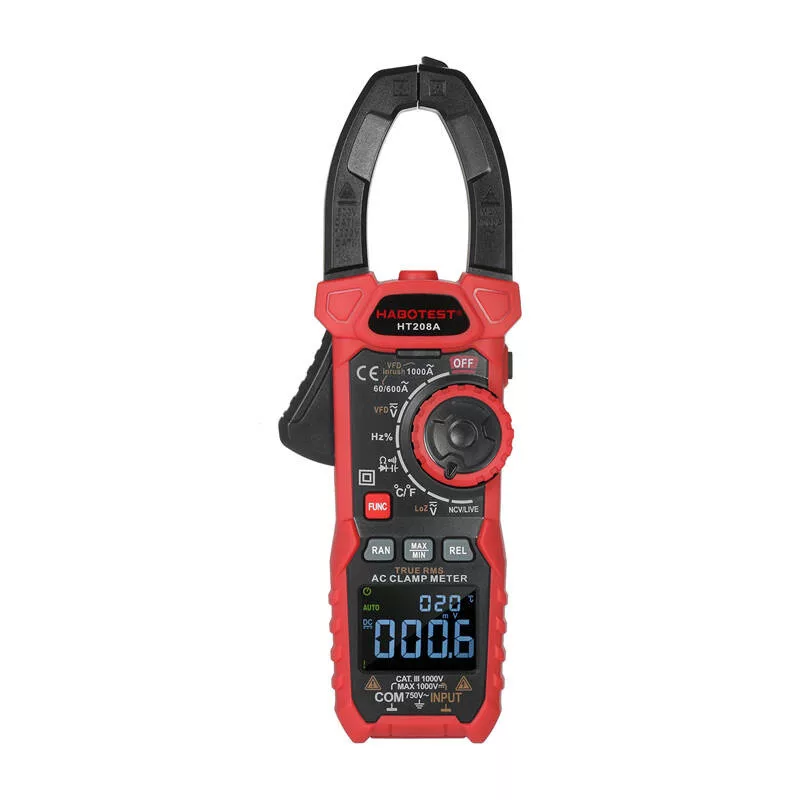

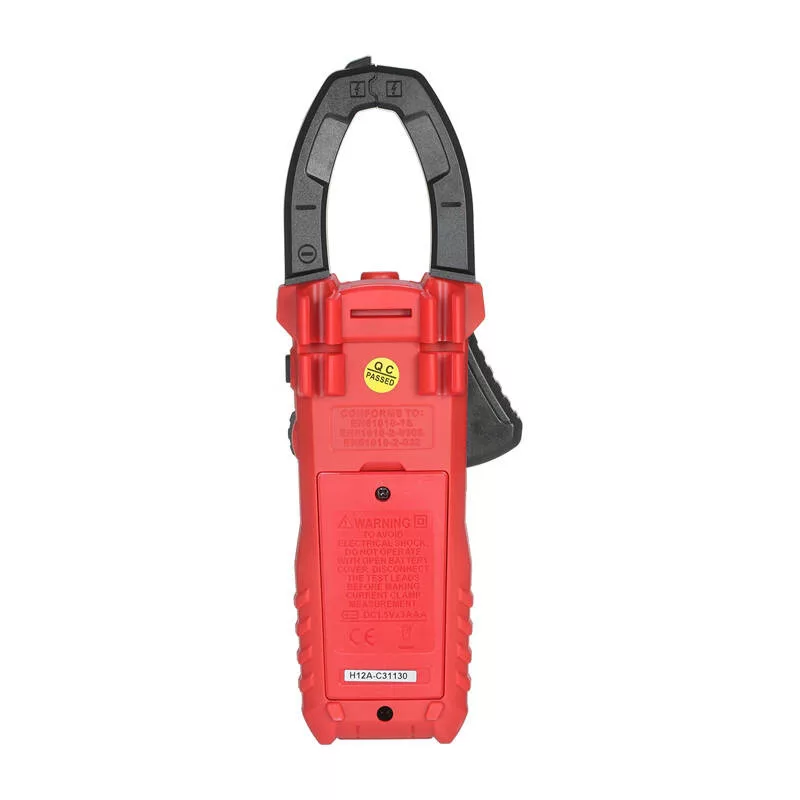

Habotest HT208D digital clamp meter

HT208D is a practical device with which you can check the value of various parameters, for example, AC and DC voltage and current, resistance, temperature, inrush current and many others. The product provides accurate measurements, and the results are displayed on the LCD screen. The HT208D also features a flashlight for convenient operation in dark rooms.

Multifunctional device

You will use the HT208D in many situations. You can check the value of AC voltage, resistance, capacitance, temperature, frequency, NCV, etc. Furthermore, you can also check continuity and true RMS value.

Safe use

The device is completely safe to use. You can, for example, detect voltage without touching, thanks to the NCV sensors. The meter's jaws, thanks to their maximum width of 40 mm, allow you to make measurements comfortably without damaging the circuit. The flashlight function ensures comfortable and safe work in dark rooms.

Additional features

When it receives an electromagnetic signal, the NCV sensor will send an audible alarm, and if the voltage or current is high, the LCD screen color will turn orange. What's more, the device will automatically turn off to save power if no action is performed within 15 min.

FunctionHT208AHT208D
DC voltage

6V/60V/600V/1000V

±(1%+3)

6V/60V/600V/1000V

±(1%+3)

AC voltage

6V/60V/600V/750V

±(1.2%+3)

6V/60V/600V/750V

±(1.2%+3)

DC currentn/a

60A/600A/1000A ±(2.5%+5)

AC current

60A/600A/1000A

±(3.0%+5)

60A/600A/1000A

±(3.0%+5)

Resistance

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

±(1.0%+3)

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

±(1.0%+3)

Capacity

10nF/100nF/1μF/10μF/100μF/1mF/10mF ±(4.0%+3),

100mF ±(5.0%+5)



 10nF/100nF/1μF/10μF/100μF/1mF/10mF±(4.0%+3),

100mF ±(5.0%+5)

Frequency

 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

±(1.0%+3)

10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

±(1.0%+3)

Duty

 1%~99%

±(1.0%+2)

1%~99%

±(1.0%+2)

Temperature

 -40°C~1000°C

±(1.0%+3)

-40°C~1000°C

±(1.0%+3)

Counts 60006000

Auto/manual range

 YesYes
Continuity Yes, LED and buzzYes, LED and buzz
Diode YesYes
Data hold YesYes
NCV Yes, LED and buzzYes, LED and buzz
Double color backlight YesYes
Flashlight YesYes

Low battery indicator

 YesYes
Auto power off YesYes
True RMS YesYes
LPF YesYes
MAX/MIN YesYes
V-LoZ NoYes
Power 2x AA batteries (in the box)2x AA batteries (in the box)
Weight about 380 gabout 380 g
Size 240 x 85 x 40 mm240 x 85 x 40 mm
Size of jaws 44 mm44 mm
Safety

EN61010-1, -2-030 EN61010-2-033,

EN61326-1 CAT III 1000V, CATIV 600V

EN61010-1, -2-030 EN61010-2-033,

EN61326-1 CAT III 1000V, CATIV 600V

Adatok
EAN
5907489607711
Gyártói cikkszám
HT208D
Garancia
12 hónap
Gyártó
Habotest
EAN
5907489607711
Cikkszám
IP-21656
