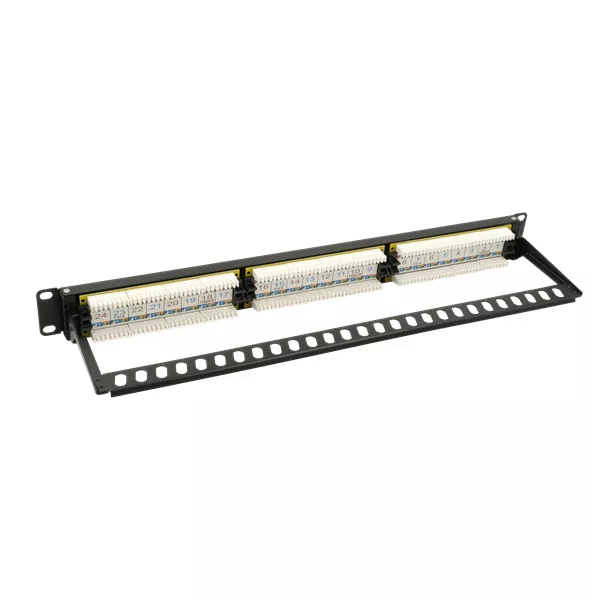

Walisec patch panel - PP-P6U2402 (24 port, Cat6, 1U, árnyékolatlan, fekete)

Connector Type

Category

Cat 6

Shielding

Unshielded

Connector

3*8 x RJ45 Jacks

IDC Type

Dual (110 & Krone)

Material

Housing Material

PBT

IDC Material

PC

Contact Jaw: Phosphor Bronze with Tin Plating, thickness = 0.8 mm

Contact Material

Phosphor Bronze with Nickel Plating, thickness = 0.45 mm

Contact Surface Material

Gold Plating, thickness = 1U (1μin or 0.0254µm)

PCB Material

FR-4, thickness = 1.6 mm

Panel Frame

Carbon Steel, Powder-Coated in Black, SPCC 1.5 mm

Electrical Properties

Voltage/Current Rating

125 VAC RMS / 1.5 A

Insulation Resistance

≥ 1000 MΩ at 500 VDC

Contact Resistance

≤ 100 mΩ

Dielectric Strength

750 VAC RMS, 60Hz, 1 minute

Mechanical Properties

RJ45 Jack

≥ 750 mating cycles

IDC Lifespan

≥ 250 termination cycles

Wire Gauge

AWG 22-26

Wiring Scheme

T568A/T568B

Environment

Operating Temperature

-25°C to 70°C

Operating Humidity

RH 10% to 90% (non-condensing)

Storage Temperature

-40°C to 85°C

Storage Humidity

RH 5% to 96% (non-condensing)

General

Installation

Rack Mount, Standard 19-inch

Dimension

482.6 (19") x 44.45 (1U) x 121 mm (WxHxD)

Net Weight

670 g

Gross Weight

780 g
